介绍

VoceChat 是一款支持独立部署的个人云社交媒体聊天服务。15MB 的大小可部署在任何的服务器上，部署简单，很少需要维护。前端可以内嵌到自己的网站下，数据完全由用户自己掌握，传输过程加密。VoceChat 从 Slack, Discord, RocketChat, Solid, Matrix 等产品和规范中博采众长，适用于团队内部交流，个人聊天服务，网站客服，网站内嵌社区的场景。

此文档记录使用k8s部署voce-chat，同时使用nfs作为持久化方案

部署过程

depoly文件示例

---
# 新建namespace app-vocechat
apiVersion: v1
kind: Namespace
metadata:
  name: app-vocechat
---
# 新建pv，将共享存储挂载
apiVersion: v1
kind: PersistentVolume
metadata:
  name: nfs-vocechat-data-pv
  labels:
    type: nfs-vocechat-data-pv
spec:
  capacity:
    storage: 50Gi
  accessModes:
    - ReadWriteMany
  persistentVolumeReclaimPolicy: Retain
  nfs:
    path: /home/jiangwe/vocechat/data
    server: k8s-master
---
#  新建pvc，将pv绑定
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: nfs-vocechat-data-pvc
  namespace: app-vocechat
spec:
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 50Gi
  selector:
    matchLabels:
      type: nfs-vocechat-data-pv
---
# 新建app，开放3000端口，同时限制资源
apiVersion: apps/v1
kind: Deployment
metadata:
  name: vocechat
  namespace: app-vocechat
  labels:
    app: vocechat
    createdBy: Apps
spec:
  replicas: 1
  selector:
    matchLabels:
      app: vocechat
  template:
    metadata:
      labels:
        app: vocechat
    spec:
      containers:
        - name: vocechat
          image: docker.m.daocloud.io/privoce/vocechat-server:latest
          resources:
            limits:
              cpu: "4"
              memory: "4G"
          ports:
            - containerPort: 3000
          volumeMounts:
            - name: data-volume
              mountPath: /home/vocechat-server/data
      volumes:
        - name: data-volume
          persistentVolumeClaim:
            claimName: nfs-vocechat-data-pvc
---
# 新建services
apiVersion: v1
kind: Service
metadata:
  name: vocechat-service
  namespace: app-vocechat
spec:
  selector:
    app: vocechat
  ports:
    - protocol: TCP
      port: 3000
      targetPort: 3000
  type: ClusterIP

提交至k8s

# 提交至k8s
kubectl apply -f depoly.yml

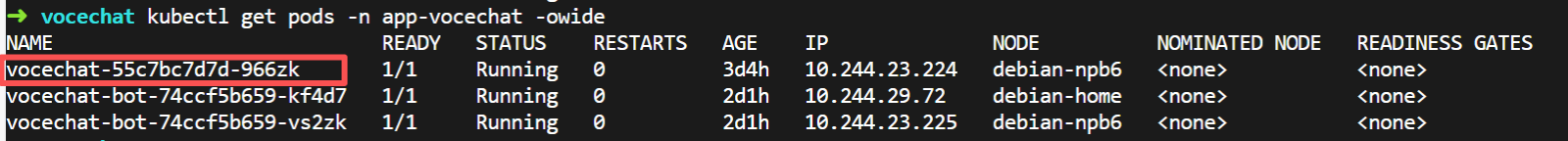

kubectl get pods -n app-vocechat -owide

此时即已支持提供外部访问，如果需要外网访问，可使用nginx反代至voce-chat(未使用ingress)

反代voce-chat

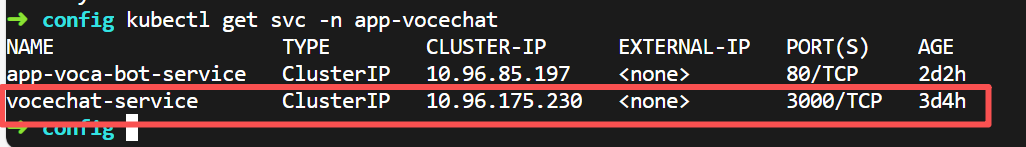

查看services信息

kubectl get svc -n app-vocechat

NGINX配置文件

server {
    listen 443 ssl ;
    listen [::]:443 ssl ;

    server_name chat.domain; # domain修改为自己的域名

    if ($host != "chat.domain"){ # domain修改为自己的域名
        return 404 ;
    }
    client_max_body_size 1024M;
    proxy_read_timeout 720s;
    proxy_connect_timeout 720s;
    proxy_send_timeout 720s;
    proxy_buffer_size 10240k;
    proxy_buffers 16 10240k;
    proxy_busy_buffers_size 20480k;
    proxy_temp_file_write_size 20480k;

    proxy_set_header Host $host:1443;
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_set_header X-Forwarded-Host $server_name;
    proxy_set_header X-Real-IP $remote_addr;
    proxy_http_version 1.1;
    proxy_set_header Upgrade $http_upgrade;
    proxy_set_header Connection "upgrade";

    access_log /var/log/nginx/chat.domain/log/access.log; # domain修改为自己的域名
    error_log /var/log/nginx/chat.domain/log/error.log; # domain修改为自己的域名

    location ^~ /.well-known/acme-challenge {
        allow all;
    }

    location / {
        proxy_pass http://services:3000; # services修改为上一步获取到的services地址
    }

    ssl_certificate /etc/cert/.lego/certificates/_.domain.crt; # domain修改为自己的域名
    ssl_certificate_key /etc/cert/.lego/certificates/_.domain.key; # domain修改为自己的域名
    ssl_protocols TLSv1.3 TLSv1.2 TLSv1.1 TLSv1;
    ssl_ciphers EECDH+CHACHA20:EECDH+CHACHA20-draft:EECDH+AES128:RSA+AES128:EECDH+AES256:RSA+AES256:EECDH+3DES:RSA+3DES:!MD5;
    ssl_prefer_server_ciphers on;
    ssl_session_timeout 20m;

    add_header Strict-Transport-Security "max-age=31536000";

    error_page 497 https://$host:$server_port$request_uri;
    proxy_set_header X-Forwarded-Proto https;

    #ssl_stapling on;
    #ssl_stapling_verify on;
}

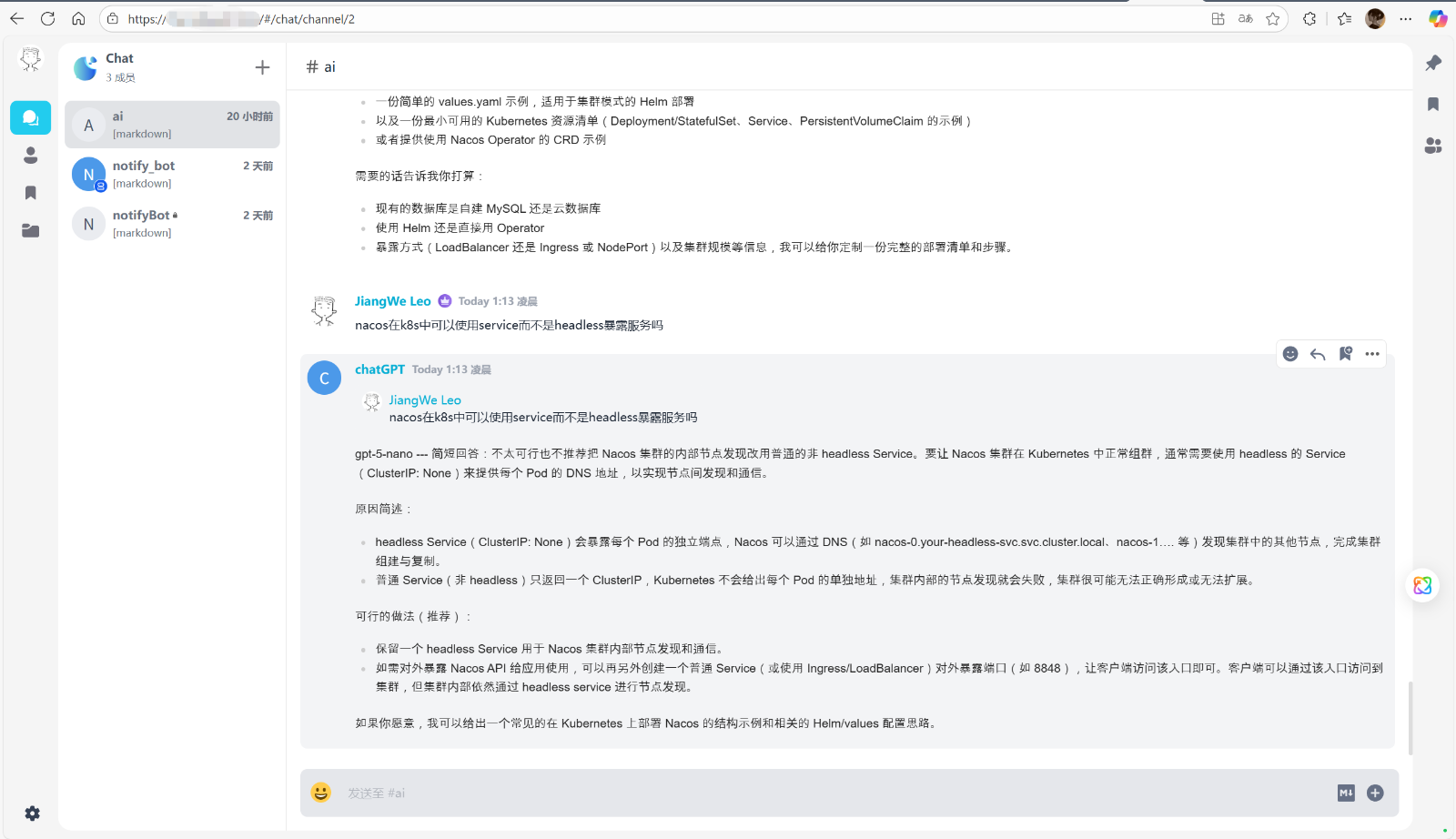

此时即可直接访问voce-chat
